Monarch XL

Speed meets innovation.

The Monarch XL is the definitive answer for ultra-fast charging. A commanding design and current technology meet the needs of the most demanding commercial applications.

Designed
from the inside out.
Explore the product

01 Overview

Polar White
Free-standing floor installation

Up to 240 kW, Mode 4,
with an integrated digital display.

With up to 240 kW of power, a 7-inch touchscreen and a built-in 15.6-inch advertising screen, the Monarch XL delivers speed, reliability and visibility. Solid floor mounting and support for advanced charging protocols make it the right choice for what comes next in electric mobility. Choose the Monarch XL and lead the change.

Maximum power
240kW
Charging outputs
02outputs
Protection
IP55enclosure
Net weight range
100–330kg

02 Design

Up to 240 kW.
No compromise on control.

The Monarch XL delivers large-scale DC power with a clear interface, solid construction and the connectivity tomorrow's networks will need.

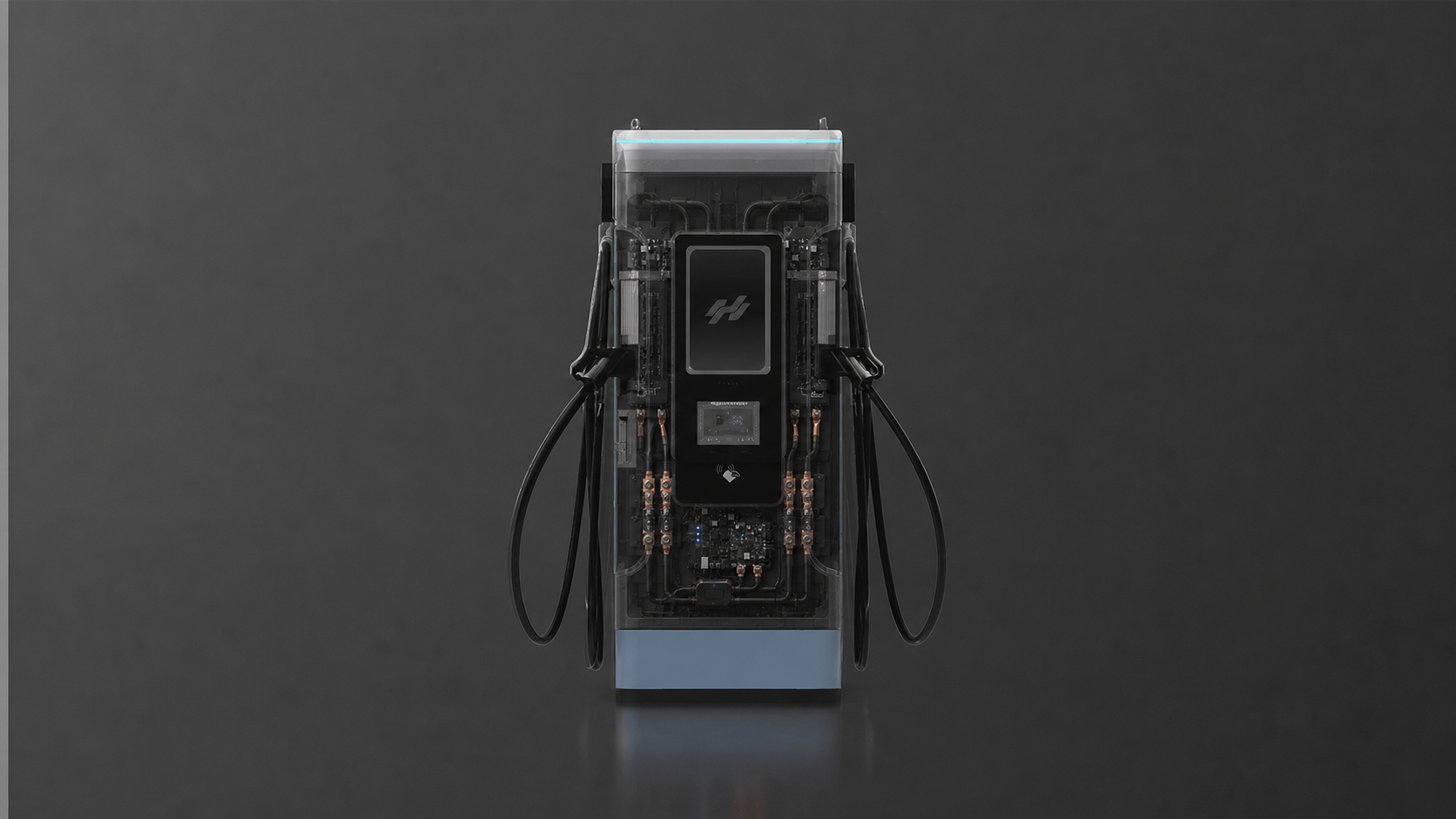

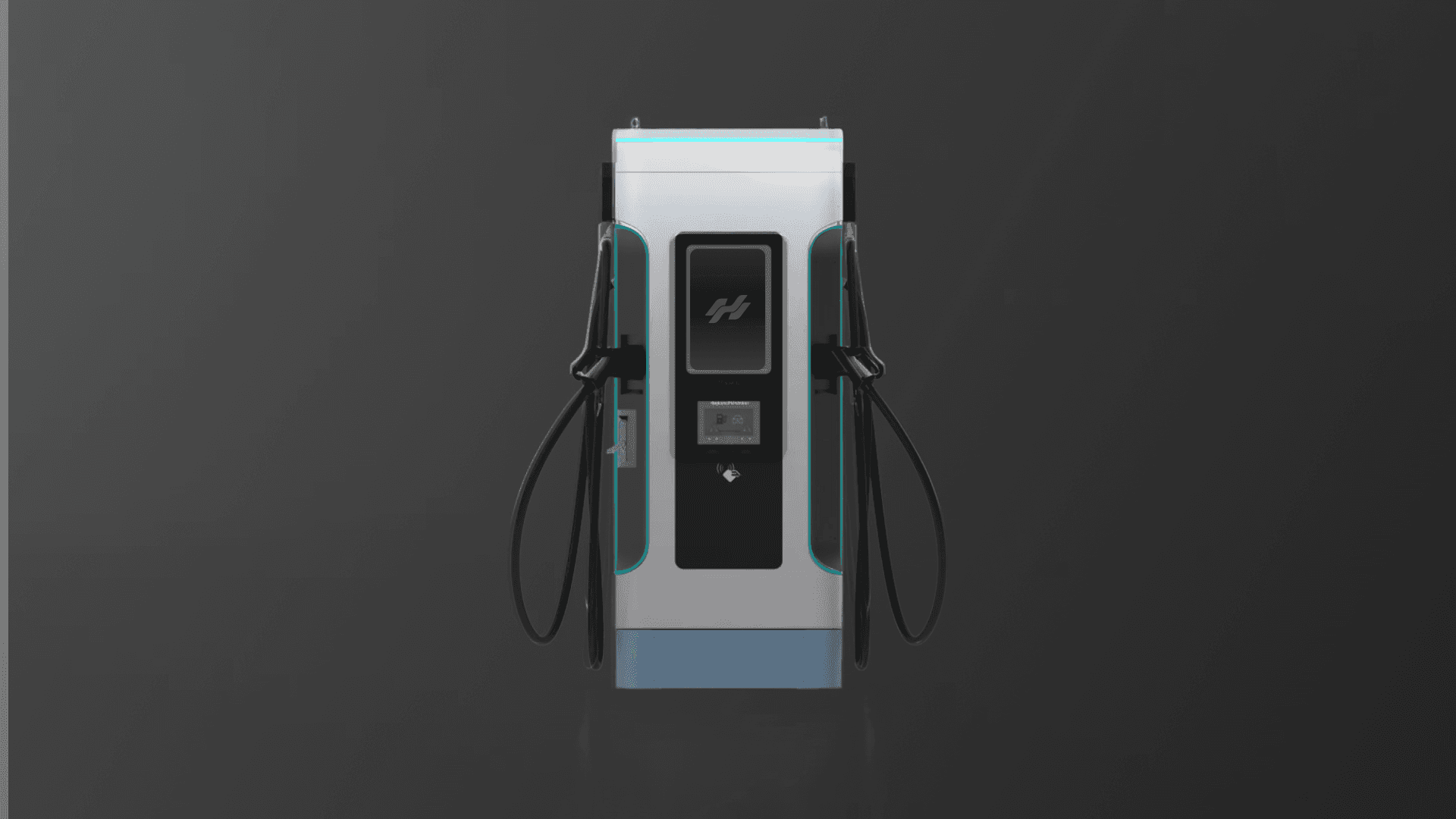

The Monarch XL in full 3D view, with both screens and its DC fast-charging cables

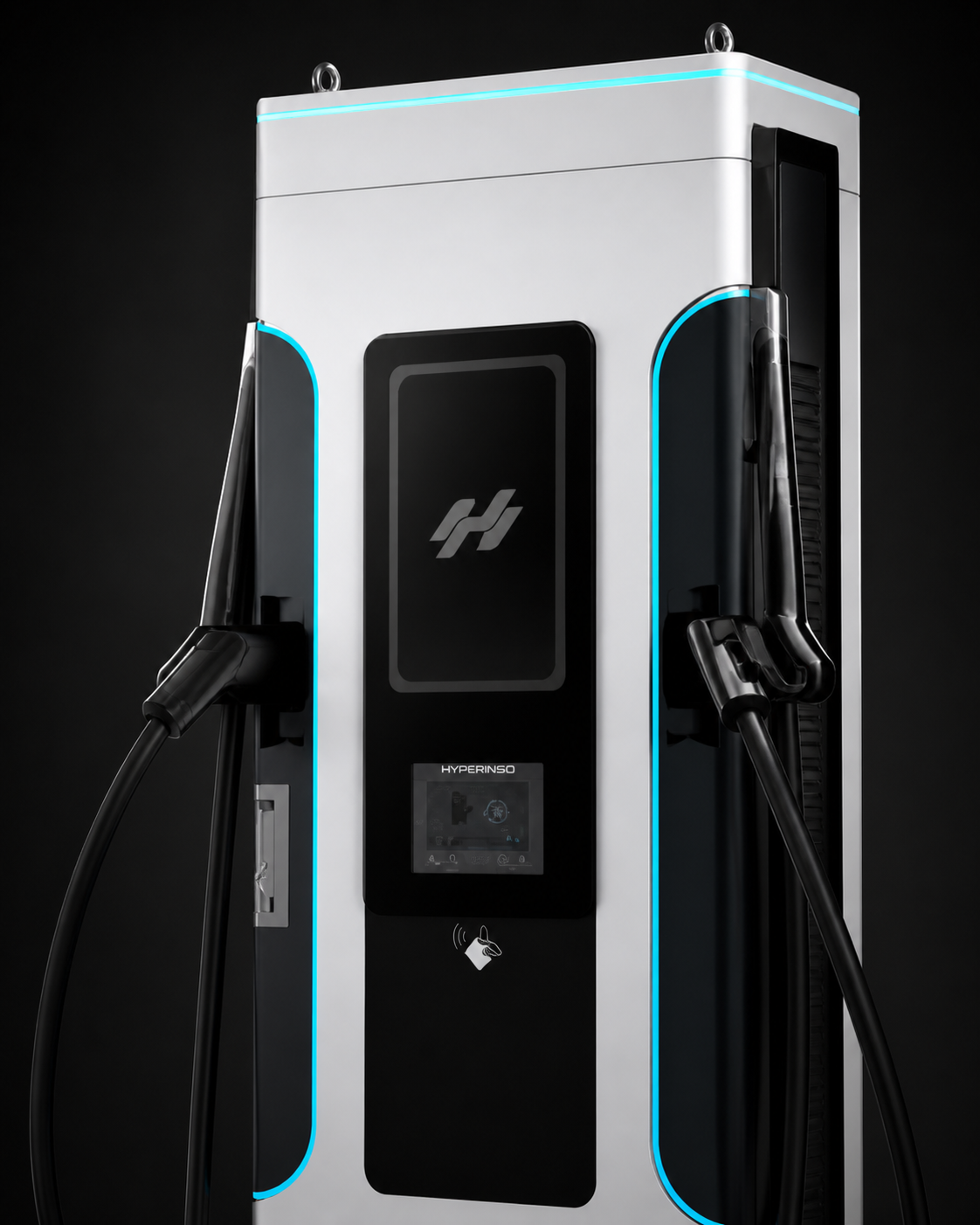

Close view of the Monarch XL's screens, control interface and connector
Side view of the Monarch XL, showing the tall metal cabinet and the cable runs

03 Technology

High power,
engineered at every level.

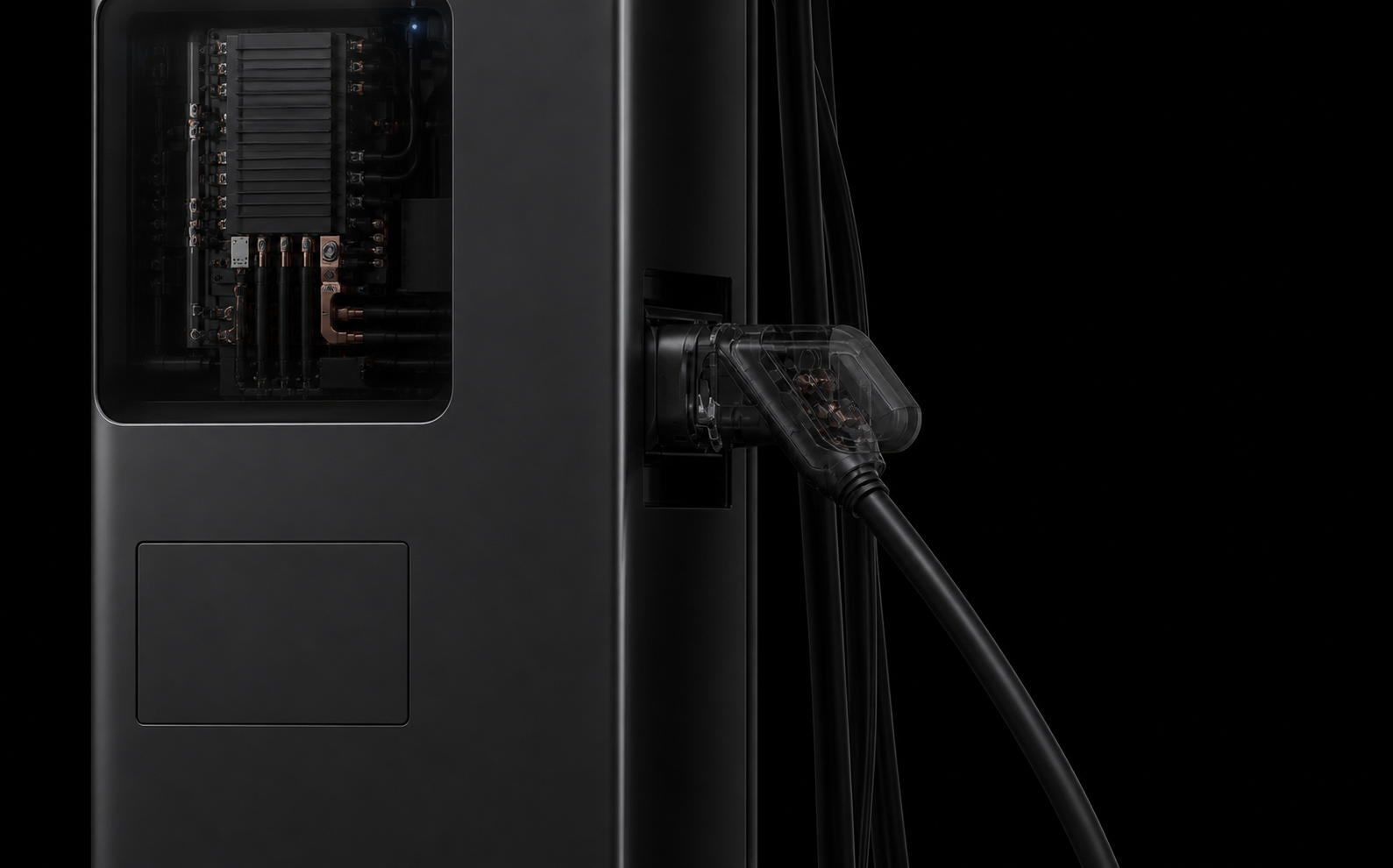

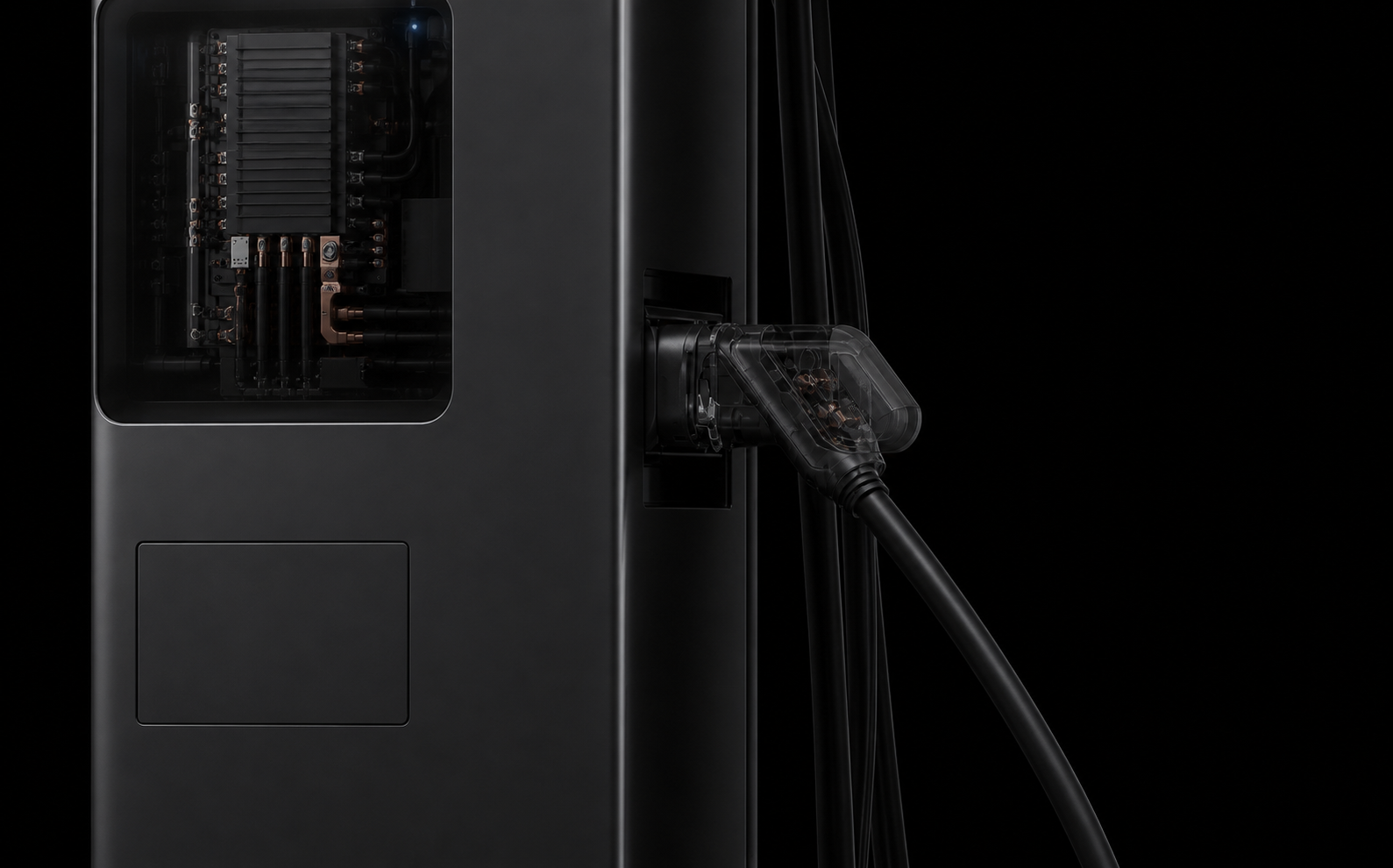

Conceptual technical cutaway of the Monarch XL's construction and components
Conceptual technical illustration · Monarch XL
  1. 01

    60 / 120 / 160 / 240 kW

    Mode 4 configurations available to IEC 61851-1 and UL2202 Level 3.

  2. 02

    Two connection points

    Two connectors with fixed 7 m cables.

  3. 03

    Two built-in screens

    A 15.6-inch advertising screen and a 7-inch touchscreen.

  4. 04

    Access and networking

    Autostart, code or RFID, OCPP 1.6 and optional Wi‑Fi, Bluetooth or 4G LTE.

04 Power and control

240kW.
Exactly where it is needed.

Power, communication and safety work as one system, matched to the needs of your installation.

OCPP 1.6Wi-Fi / BluetoothRS485Autostart / Password / RFID card

05 Specifications

Everything you need.
Nothing you don't.

The Monarch XL's technical data, organized for quick reading and accurate assessment.

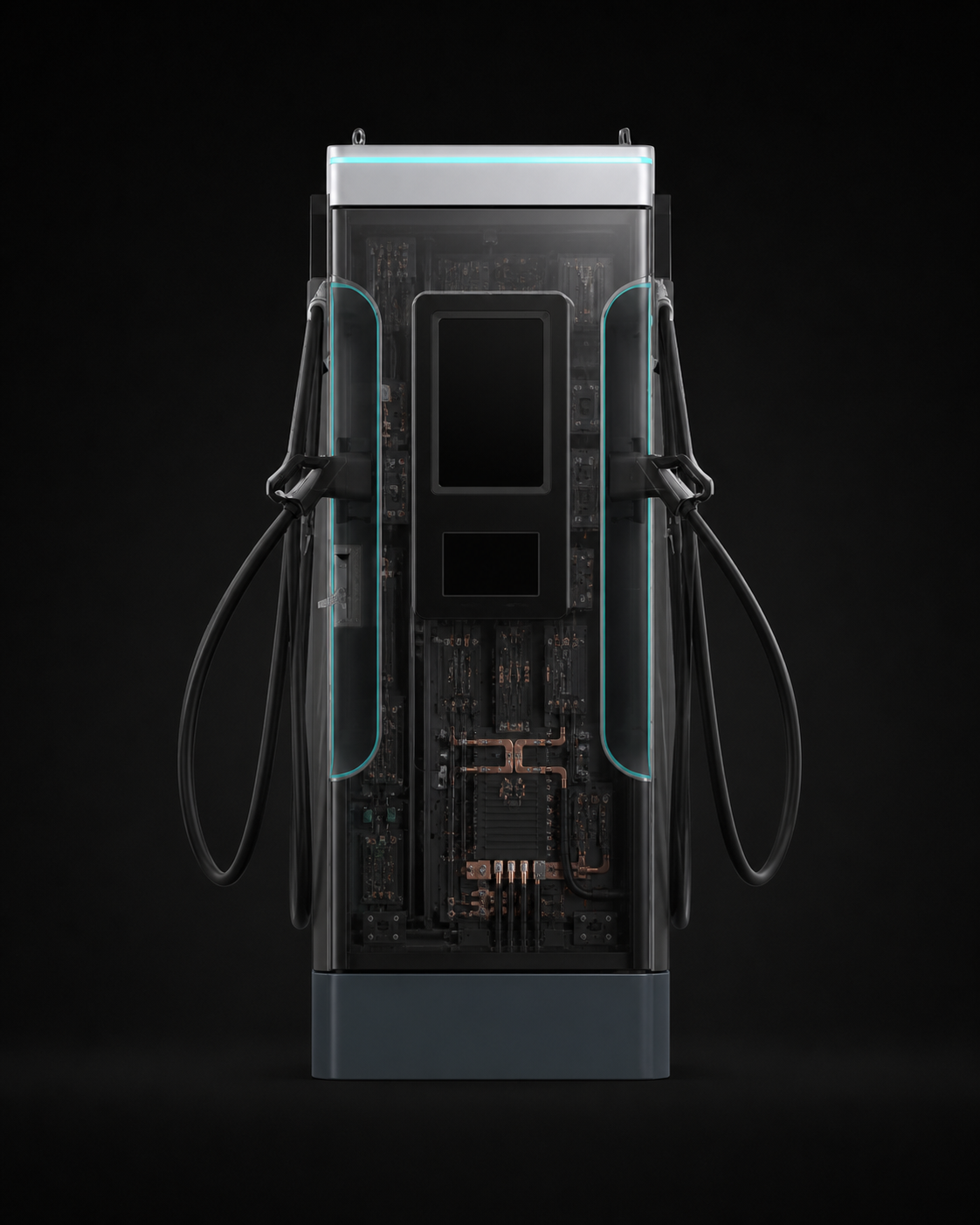

The full Monarch XL on a dark background
Monarch XLHigh-power DC fast charger
01ElectricalPower delivery
Charging capability
60/120/160/240 kW
Charging mode
Mode 4 (IEC 61851-1), UL2202 Level3
Number of connectors
2 X
Connector type
Type 1 (SAE J1772), Type 2 (IEC 62196-2), NACS
Fixed cable length
7 meters
Power connection
3-phase, 400/480 V AC, 150/200/250/300 A, 45-65 Hz
Energy metering
Optional MID Meter
Identification method
Autostart / Password / RFID card
Display
15.6-inch Advertising Screen and 7-inch Touch Screen
02ConnectivityNetwork & control
Wireless connection
Wi-Fi / Bluetooth 4.0 (Optional)
Mobile network
4G LTE (EU) (Optional)
Serial port
RS485 interface for dynamic load balancing and solar integration
Protocol
OCPP 1.6
Positioning
GPS (Optional) / Wi-Fi
Maximum altitude
+2000m
03SafetyProtection & compliance
Earth leakage detection
6 mA DC CCID
Operating humidity
Max. 95% non-condensing
Enclosure protection rating
IP55
Fire resistance
UL94V-0
Certification
CE / US
Operating temperature
-20°C to +50°C
Compliance
UL2202, UL2231, FCC part15, CSA C22.2 No.107.1, IEC 61851-23, IEC 61851-21-2
04ConstructionPhysical system
Height
1,984 mm
Depth
715 mm
Width
888 mm
Enclosure material
Sheet Metal
Net weight
100/200/300/330 kg
Gross weight
125/225/335/355 kg
Installation method
Floor standing all-in-one stand-alone unit
Color
Polar White

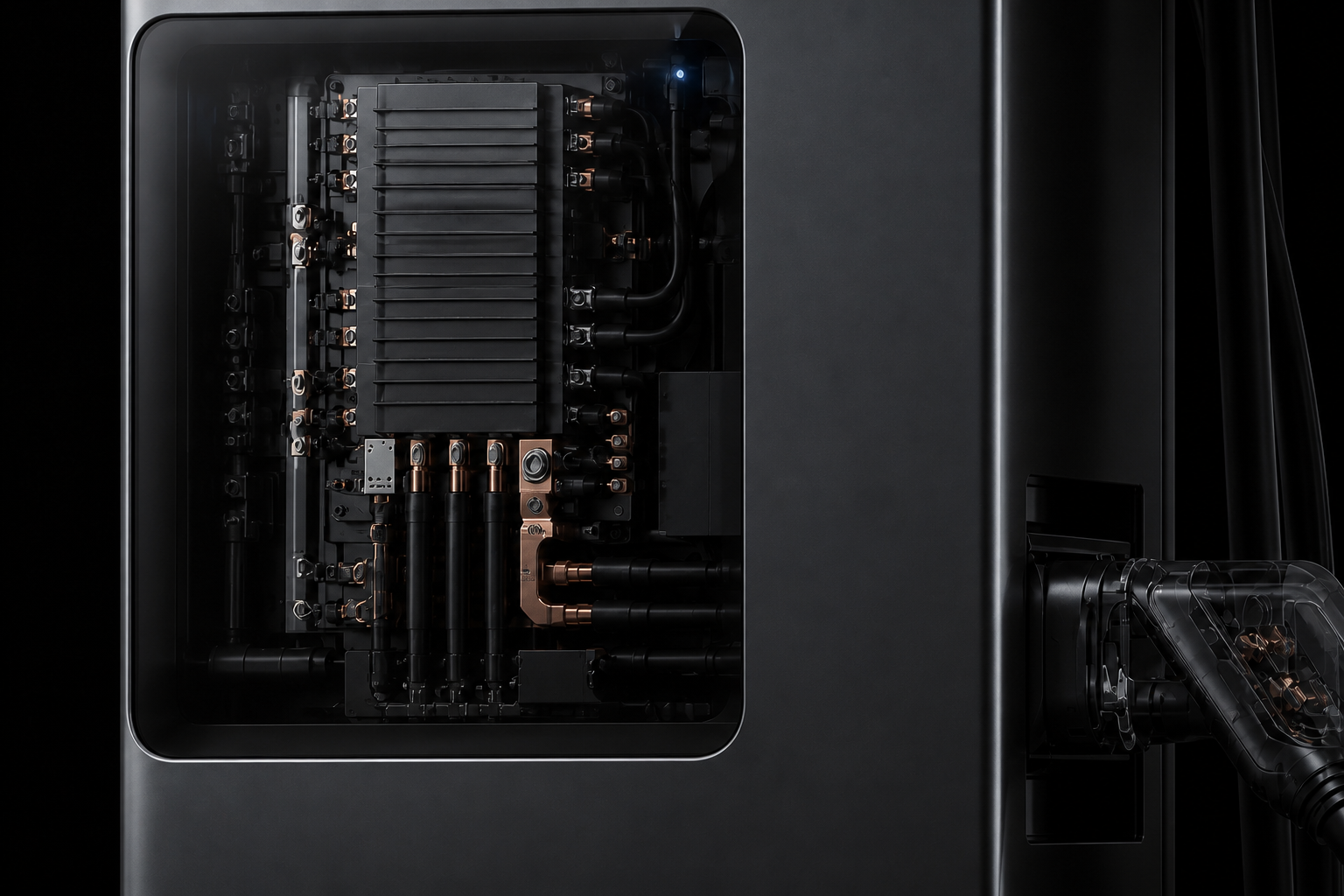

Detail of the Monarch XL's construction
Dual fast-charging outputDesigned for everyday flow

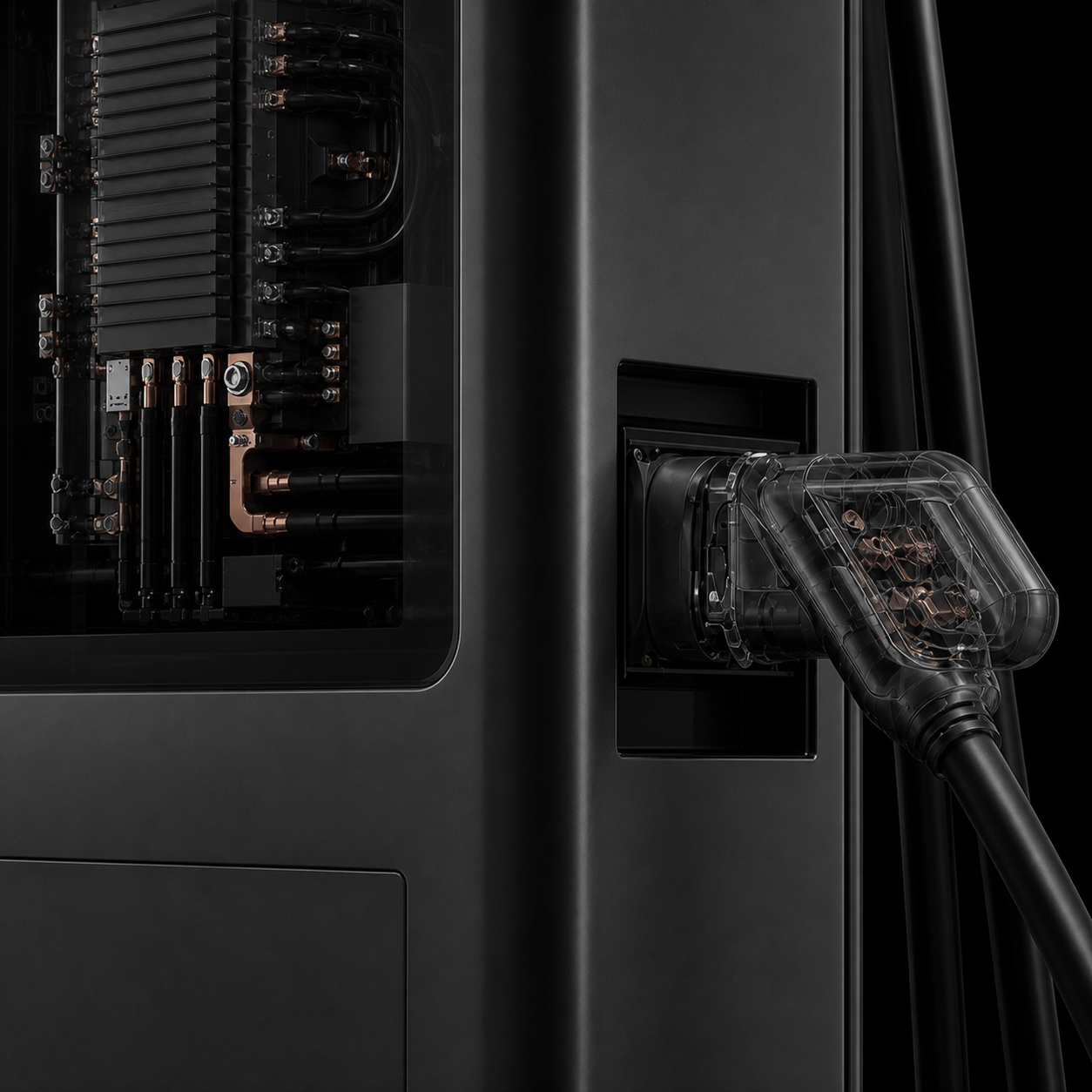

Detail of the Monarch XL's interface and connector
Point of interaction7-inch touch interface
Full view of the Monarch XL
DC power for the next stepHyperinso

06 Your own installation

Monarch XL,where you need it.

Talk to the Hyperinso team about siting, power, connectivity and the management of your own installation.
